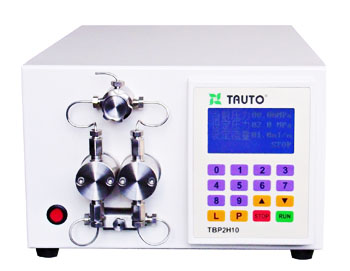

TBP series constant flow pump’s pipeline and pump head is made of 316L stainless steel which is resistant to organic solvents. This series constant flow pump is mainly used in the domains of metal, chemical engineering, pharmacy, biology, biochemistry, food and etc. It satisfies the demands of liquid delivery in institutes and enterprise units in the domains above-mentioned.
SPECIFICATIONS
Flow Rates |
1-200ml/min |
Pressure |
0 － 10.0MPa |
Pulsation |
≤ 0.2MPa |
Pressure Accuracy |
≤ 0.1MPa |
Flow Accuracy |
≤ 2% (1 － 50ml/min) |
≤ 1.5% (50 － 200ml/min) |
Flow Precision |
≤ 1.5% (1 － 50ml/min) |
≤ 1% (50 － 200ml/min) |
| Pipeline Materials |
Ruby、316L stainless steel、Zirconia ceramics |
Power Source |
220V±10%,50/60Hz |
Power |
75W |
Dimensions |
360 mm × 260 mm × 160 mm |
Weight |
12Kg |
STANDARD FEATURES & CONTROLS
- Dual Self Flushing Pump Heads for Reduced Pulsation
- Dual ball and High Quality Plunger for Consistent and Precise Flow Performance
- Real-time pressure monitoring.
- Simple Front Panel Key Pad Controls with Big LED Display
- Overvoltage protection and Flow Correction System
- Materials resistant to chemicals used, including organic solvents
- Stainless Steel or PEEK Fluid Path
- Prime Purge Valve
- RS-232 Serial Com Port for Complete Control & Status Monitoring
APPLICATION FIELDS
- Chromatography analysis
- Organic synthesis
- Botanic chemistry
- Bioengineering
- Fine chemistry
- Pharmaceutical chemistry
- Life science
- Environment protection
Control System Software
- Real-time Display of Current Pressure, Set Pressure and Set Flow Rate
- Real-time Display In Curve of Working Pressure
- Operation via Computer
- Timing Function For The Facility of Working Time Setting
- Function of Saving Current Working Pressure For Checking
- Function of Printing Important Parameters Such As Current Pressure
|
